ZY-EM1504
ZOYER
四头机参数

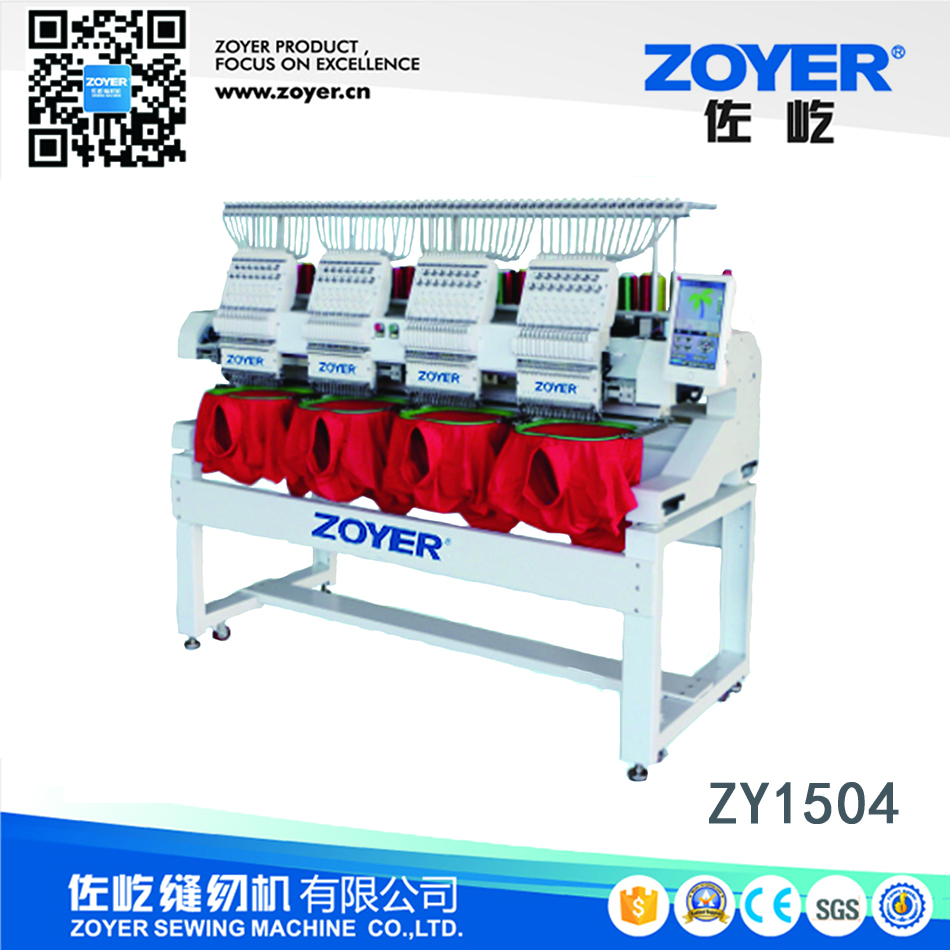

Specification of four heads machine
1. 型号Model | ZY-EM1504 |
2. 头数Head | 四头 four heads |
3. 绣花面积Working area | 400*600mm |
4. 针数Needles | 15针 15Needles |
5. 速度 Speed | 平绣:100-1000转 Flat :100-1000RPM
|
6. 电控 Computer | 高清真彩10英寸液晶显示屏 A15 High-definition true color 10-inch LCD A15 |
7. 主轴电机 Spindle Motor | 伺服电机 Servo motor |
8. 旋梭 Hook | 佐文旋梭 Japan hook |
9. 功能 Functions | 适用于平绣 Suitable for flat |
10. 屏幕 Screen | 触屏touch screen |
11. 换色 Color change | 自动换色 Automatic color change |
12. 剪线 Trim | 自动减线 Automatic trimming |
13. 停机 Stop | 紧急停机 Emergency stop |
14. 操作语言 Support multiple languages |
中,英,西班牙,葡萄牙,土耳其,荷兰,法,德,泰,阿拉伯Chinese,English,Portugal, Turkey, The Netherlands, France, Germany, Thailand, And Arabia |
15. 刺绣检测 The embroidery test | 刺绣可预览花样、刺绣轨迹,可实时显示针脚运行过程Embroidery can preview the pattern and embroidery track, and can display the running process of stitch in real time |
16. 花样导入Import pattern | USB接口 USB |
17. 花样格式 Pattern format | Dst格式 DST format |
18. 操作 Operation | 启动、停止、急停、快走框、慢走框、点动100度、剪线、换色针数、菜单、边框设计、换色设置、设置原点、找到原点、加速、减速 Start, stop, emergency stop, fast running box, slow running box, inching 100 degrees, line cutting, color change needles number, menu, border design, color change setting, set origin, find origin, accelerate, decelerate |
19. 面线夹 Thread Clamp | 新型专利技术智能面线夹系统,可以自动调节面线张力,使面线张力更稳定,绣品质量更好The new patented intelligent upper thread clamp system can automatically adjust the tension of the upper thread ,so that the tension of the upper thread is more stable and the embroidery quality is better |
20. 面线装置 thread device | 面线装置内有独立电磁阀控制单元,可有效防止脱线 There is an independent solenoid valve control unit in the thread device ,which can effectively prevent the thread from falling of |
21. 毛/净重 Weight | 毛重6500KG, 净重5000KG GW:6500KG,NW:5000KG |
22. 包装尺寸 Packing size | wooden case |
23. 电压 Voltage | 110-220V |
24. 价格Price |
