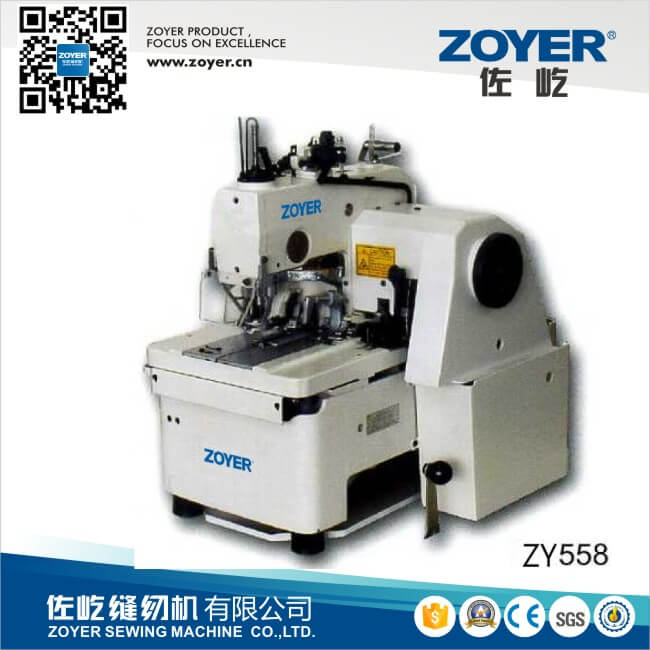

ZY558 Durkopp 558 Eyelet Button hole Machine Durkopp Adler Sewing Machine (ZY558)

Quantity:
  • ZY558

  • Automatic

  • 3~15mm

  • 400~2, 500sti/Min

  • ZOYER

  • SGS

  • SGS, CE, ISO

  • Sewing Machine

  • D0×558 Nm90~Nm120 (Nm110)

  • Buttonholing Machine

  • Carton

  • Tai Zhou Zhejiang China

1.This machine is can sew two different types of stitches,namely whip stitch and purl stitch.

2.The sewn seam is beautiful and firmly.

3.High sewing speed and adjustable button hole length width and stitches number.

4.Automatic lubrication system and thread trimmer are equipped.

Specification



ApplicationStitching shape patternsStitch systemSewing speedSewing lengthNeedle throwing widthTaper bar lengthNeedle

Jeans Cotton pants and working wear
Buttonhole without a bartack,Buttonhole with a round bartack,Buttonhole with a straight bartack,Buttonhole with a taper bar
The machine is provided as standard with 10 different stitching shape patterns of eyelet buttonhole. As many as 89 different patterns can be stored in memory and selected.
1-needle, double chainstitch(with gimp)
400~2,500sti/min
10~38mm(Needle thread trimming type)
10~34mm(Overall thread trimming type)
Mechanical adjustment of the needle throwing width:2.0~4.0mm
Compensation of the needle throwing width (by the lower feed dog):1.5~5.0mm
3~15mm
D0×558 Nm90~Nm120 (Nm110)
